1. From CT1APV
3. Unplug all external radio connections.

   Remove top and bottom covers.

4. Remove 4 screws holding the faceplate to the chassis on the right and left side of the faceplate. Gently pull the face away from the chassis about an inch for working room, but don't unplug anything.

5. With unit sitting upright, locate Digital Unit B. It is on the right front corner right behind the faceplate. If you have a voice synthesizer unit the voice unit is mounted to the top of it. If not, there are 4 raised mounting holes on top to hold the voice synthesizer unit. Remove the 4 screws from the VS-1 board, and fold it out of your way to the left.

6. Remove the 5 screws (3 on left, 2 on right) from the Digital Unit B shielding.

7. There is no need to disconnect any connectors. Tip the Digital Unit B shielding case up from the right side. Use something to hold it up for you.

8. Now simply look on the lower right hand corner of the board. Locate IC-109. Now look up and to the left and you will find D-130. Snip one lead of D-130.


9. That's it. To test, attach a dummy load and transmit out of band. Now Go back through the steps and put the unit back together.

*******Original text below*********

Locate IC number 109.
Now find diode 130 and cut it for all-band transmit.

If you want just MARS coverage, locate IC 111 and 112, and snip diode 135 beside it.

Dedicated to the Detail Lists

Are you a TS-940S Rx lover? You should know that it can be even better if you do some corrections. Two errors that I found, both also showed in the Service Manual, Revised Edition.

See the FETs Q10 (RF Preamp Preamp 2SK125, N-FET, 25V, 0.1A, 0.3W) and
Q4 Q5 (2nd balanced mixer, also 2SK125).
The picture above was scanned from the TS-940S Service Manual, Revised Edition.
In these pictures the FETs are in the wrong position.

I can assume that thousands of other TS-940S are also waiting to be corrected and perform Rx even better (mistakes "hidden" for almost 20 years!)

Check yourself with instruments, it can be probably more than 10 dB of gain and a better AGC performance.

See the Level Diagram in the Service Manual. With the FETs on the right position,
we would have 12.5 dB (17 - 4.5) gain in the RF Preamp,
and 17 dB (44 - 27) in the 2nd balanced mixer at the indicated points in the picture above.
It would be interesting to measure these gains before the correction.
With this measurement we would have an idea about the sensitivity losses due to the two errors.

I laught a lot when I confirmed both errors! Almost two decades waiting to be corrected!

As I never heard about this problem, I decided to reveal it to the whole world.

My radio was working apparently well. This is the 1st TS-940S that I could observe and analyze in detail its circuits. First I found the RF Preamp FET in a odd position, but only few days after I could focus and see that the cascode circuit was correct in the schematic diagram and wrong in the PC board. It was also wrong in the PC board view pictures in the Service Manual.

I also noticed that a FET was hotter than the other. It was as simple as disordered and turn the FET 180° and resolder it all over again.

Some FETs can be used either way around without any noticeable change in behaviour. However, most FETs are built with a channel wider at one end that the other. So, although you can use a FET with the drain and source leads swapped around, most of them don't work very well if you try it. Therefore try to correct your TS-940S. Who knows that the 2SK125 can be swapped?

This picture shows the FET in the correct position.

The RF gain increased and the noise decreased. Very fine! But, in the middle of the night, excited with this amazing discovery, I kept on thinking if this error was the only one.

I got back to the Service Manual, and following the circuit diagram, checking the PC boards, I found a second mistake: in the 2nd balanced mixer, in the IF unit, another inverted FET (Q4), harming the mixing/conversion, the gain, and the AGC performance.

This picture shows the FET in the correct position.

By eliminating these "losses", my famous TS-940S "won" 10 dB more! Because of that, I had to made S-Meter adjustments.

I suggest you to revise the famous TS-940S receiving performance to be even better, of course!

Our next step will be identify different N-FET for replacement. The 2SK125 is discontinued since 1996. Probably by using modern FETs, the receiving performance will increase. Who knows?

I recommend voltage measurements before and after the correction.

The modifications were verified and tested by myself, so if you try this mod on your own equipment, it's on your own risk.

Have fun, revise your TS-940S! Smile!

Nelson Ricardo - PY1NR

Do not hesitated to contact us if you have questions

This article can also be found at http://www.guisard.com/Index_Choose_Language.htm.

For use with a TL922 amplifier it is necessary to use a high-voltage transistor such as the MJE340 and a zener diode of 150V as it has a 100V DC relay coil that must be grounded for TX operation. This modification will work on any amplifier requiring pull-down for TX. If the pull-down is only for 12V, the zener diode voltage can be lowered to 15V or eliminated all together if there is no relay.

COLLECTOR SWITCHING WAVEFORM

In any situation you have big chances to blow up again the drivers. The first reason is because this transistors are high voltage transistors (29V) We know that high voltage RF transistors has higher gain then 12V transistors, and the possibility of oscillations it is also bigger. In the same time the design of the PA layout is not one of the best, which help to oscillate.

What I did, I replaced MRF485 with 2SC2509 (or any equivalent 10 to 15W, 12V RF transistors in TO220 package). This transistor is cheap (used in most of CB radios). Be careful to connections, 2SC2509 has different pin configuration, BEC, (MRF485 has BCE).

You have to lift the L7 inductor (Final Unit) from the 29V bar, and connect to the output of a 12V/1.5A regulator. This could be a LM7812 (TO3 type). The input of 12V regulator was connected to 29V, from the same point where you disconnected the L7 inductor. I installed LM7812 regulator on a small heat sink, outside of the PA compartment.

Now you have to adjust the bias of the drivers. Put low power in SSB mode and adjust VR2 (Final Unit) to have 0.7V on the base of drivers. Finally if the output power is not 100W you can adjust VR2 (Control Unit), and VR3 (Control Unit) for ALC.

Good luck and I am not responsible for any mistakes you make!


These high gain transistors cause the circuit to become unstable which can cause the circuit to break into self oscillation, and therefore self-destruct.

Recommendations:

Use of Red, Orange, or Yellow hfe color rankings is recommend. These lower gain transistors work just fine and do not suffer from the circuit instability problem. If you are only able to obtain the high gain transistors you will need to modify the varistor/temperature compensation circuit on the final unit (X45-1400-00) by changing R16 from 1.2 Kohm to 2.2 Kohm.

During its production the TS-940S used two different varistor values. The original part was an STV3H(O). It was changed in mid-production to an SV-03YS. R15 was changed from an 820 ohm resistor to a 1 Kohm resistor at the same time. Therefore the countermeasure differs depending upon the serial number of the radio.

Caution: If using a Green or higher hfe rank one of the above countermeasure must be taken depending upon the serial number of the set. After replacing the drivers check the bias current. We recommend transmitting for 1 hour in SBB mode with no modulation into a dummy load. After this time frame check the bias current. It must not exceed 300 mA on the original radio. If the current changes you must change R16 from 1.2 Kohm to 2.2 Kohm.

Parts required:

PLL UNIT (X50-2020-00)

R120, 129     3.3 Kohm 1/6 watt carbon resistor     RD14CB2C332J
R121, 124     680 ohm 1/6 watt carbon resistor      RD14CB2C681J
C180, 181     .01 µF disc ceramic capacitor         C91-0117-05
C184, 185     .33 µF 35V Tantalum capacitor         CS15E1VR33M

RF UNIT (X44-1660-00)

R154, 155     3.9 Kohm 1/6 watt carbon resistor     RD14CB2C392J
C193, 194     1 µF 25V Tantalum capacitor           CS15E1E010M

Procedure:

On the PLL unit (X50-2020-00) remove capacitor C176, C180, and C181. Change resistor R120 and R129 from 470 ohms to 3.3 Kohm. Change resistor R121 and R124 from 1 Kohm to 680 ohms. Change capacitors C184 and C185 from .22 µF to .33 µF 35V tantalum capacitors. Install C180 and C181 in the positions shown in the accompanying diagrams. The use of new capacitors is recommended to improve reliability, don't try to reuse the old capacitors! Capacitors C181 and C180 should be attached to the foil side of the PLL unit.

On the RF unit (X44-1660-00) install the series RC circuit composed of R154 and C193, and R155 and C194, as shown in the accompanying diagrams. As the diagrams illustrate it is easiest to move C132 and C193 to the foil side of the board and install the series RC circuit on the component side.

This is an optional change and may not be performed under warranty. Time required for this modification is 1.5 hour or less.

Procedure:

1. Set the Dial frequency for approximately 1.8 MHz (inside the band).
2. Using an RF probe at TP5 adjust L22, L23, and L24 for a maximum reading on the meter. You should see approximately 250 mV.

3. Adjustment of L24 will produce the greatest change, which may be up to a 90° adjustment from its present position.

Reports of a PLL unlock on the lower frequencies may be due to low VCO levels. The following change will increase the VCO level and should prevent reoccurrence of this symptom.

Parts required

C168, change to 15 pF 50V (CC45SLIH150J)

Procedure:

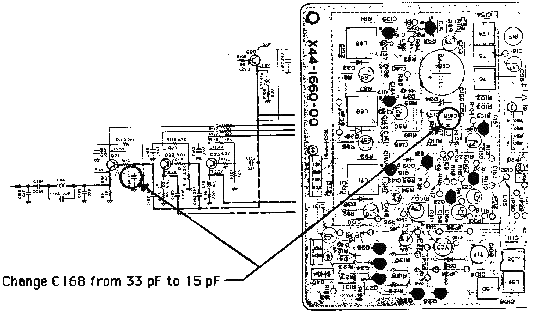

1. On the RF unit (X44-1660-00) change C168 from a 33 pF capacitor to a 15 pF 50V capacitor.
2. Readjust the VCO BPF (RF unit L74-76) according to the instructions contained in the TS-940 Service manual.

This change is applicable to units prior to serial number 606xxxx.


1. This Mod will change the TS-940 time constant from approximately 1 second to .022 second. This means that the ALC will no longer impose its own characteristics on your audio response; the ALC will now follow your own sylabbic rate and emphasis. Usually the average output will increase, which will drive a linear amplifier harder (or at least those meters will swing higher!!). Use caution in this mod and have another Ham-friend check around your TX frequency for splattering while you are QRV.
2. The TS-940 has a 10uF cap (C31) and 100K resistor (R104) which make up the time constant for the ALC. This tends to reduce the output power for the duration of the ALC time constant (or till the circuit charges up again). Then it starts all over again on the next word.
3. This procedure allows modification to the control PCB (X53-1420-11) in the TS-940 WITHOUT having to remove the board. Remove the bottom cover and locate the control PCB. Locate R137 and R104. These are located in the upper right hand corner as the rig faces you upside down (near VR-3). A service manual is helpfull for locating parts!!!
   Using an Exacto knife, VERY CARFULLY scrape off some insulation from the top of these two resistors. Now tack-solder a 1/8 watt 2.2k ohm resistor from the top of one of these resistors to the top of the other. The time constant is now changed. Reassemble and enjoy a superb rig.

Procedure:

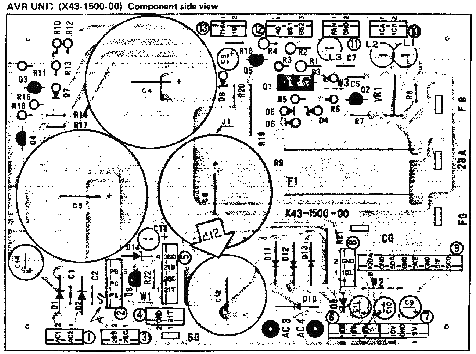

On the AVR unit (X43-1500-00) change C12 from a 6800 µF capacitor to a 5600 µF 25 V capacitor (C90-2037-05)

This change is applicable to serial numbers prior to 701xxxx.
